Description
Smart & Connected


Well-defined Details

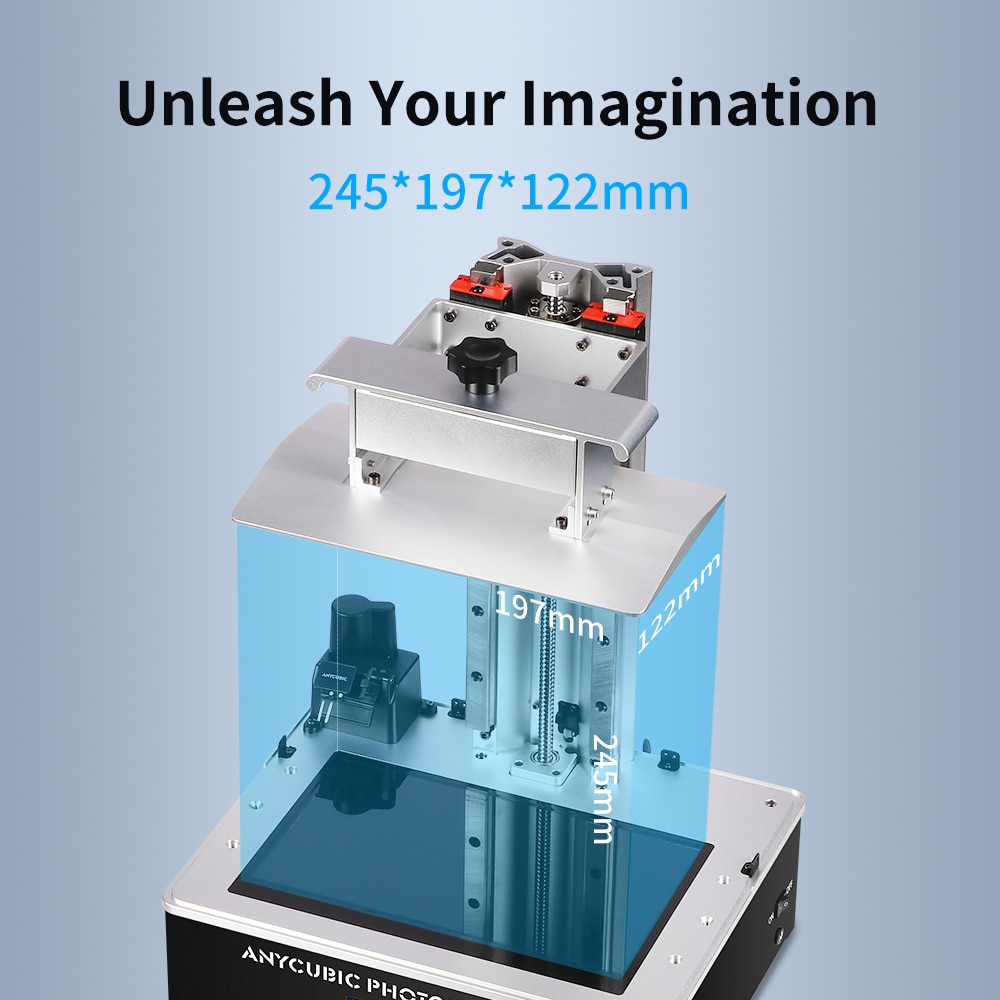

Equipped with a 9.25″ 6K exposure screen, the printer provides a large print size of 245*197*122mm and high accuracy of 34μm. The high-precision Z-axis ball screw combined to deliver fine details.Realise your potential through perfect prints!
Anycubic Cloud Smart & Powerful
Support “USB-A 2.0 / LAN / WAN” and USB-A 3.0 / LAN/WAN control mode control mode.
No matter file transfer or printing, you can realize that just by one touch on Anycubic Cloud.

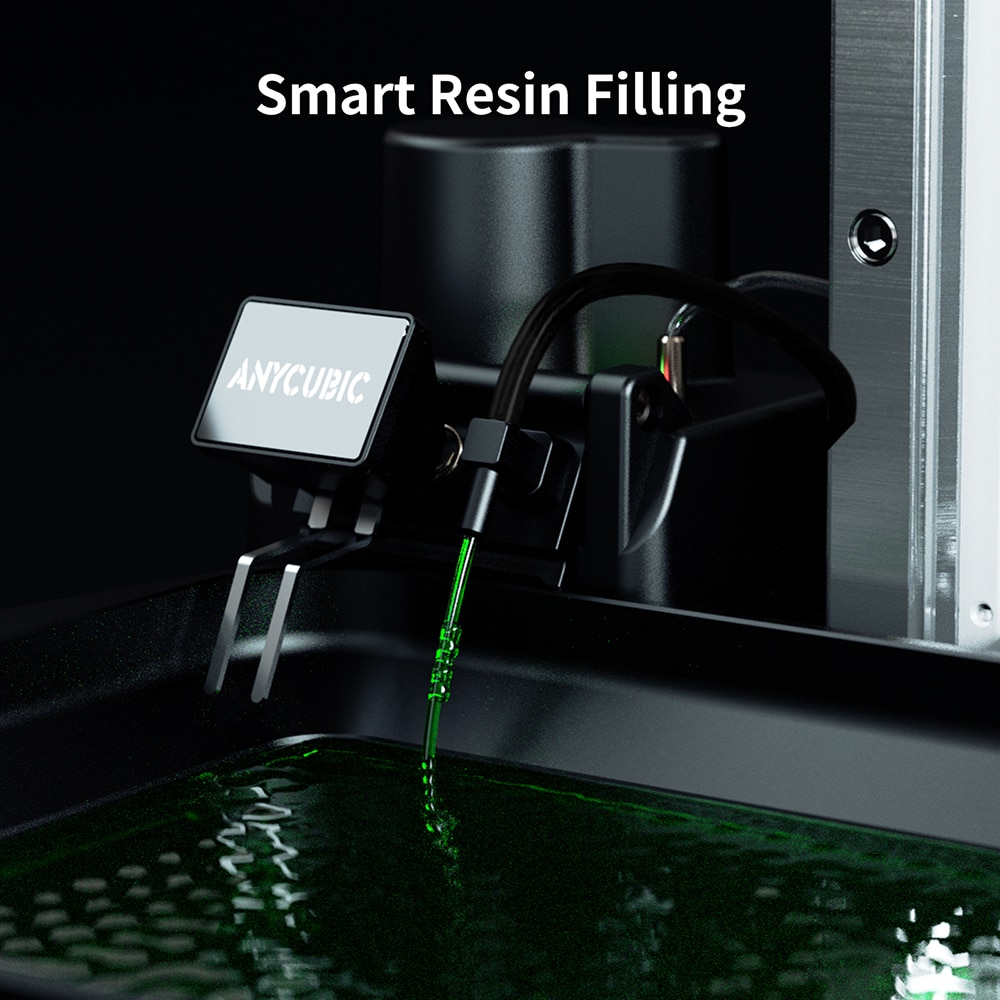

Smart Resin Filling
The new automatic feeding function automatically feed the resin vat when resin is insufficient and stop when resin is enough.
No longer to wait besides the printer.Rest without worries!
Foundation is the Key
The laser engraving pattern after repeated designs and tests greatly increases the adhesion at the bottom of the platform and improv es the printing success rate.
Speed up your printing experience
The self-developed Anycubic LighTurbo features matrix-arranged LCD beads, which provide strong light power, making high-speed printing possible.
Sharpen your prints
The screen contrast ratio is as high as 350:1, 75% higher than that of competitive products (200:1), greatly improving printing details.
Contrast ratio is 75% higher than that of competitive products.
Every minute counts
The maximum printing speed can reach up to 100mm / h. It takes only 1.2 hours to print a 12 cm highmodel, saving 1.8 hours compared with 3 hours of competitive products.
Protect what matters
An extra anti-scratch film is included in the printer to protect the valuable 9.25-inch 6K screen and make the printing more relaxed.
User-friendly large touch screen
The printer is equipped with a5-inch LCD touch screen, which is very sensitive to response and brighter in color, offering better using experience.
Fully Compatible Slicer
The printer is fully compatible with Anycubic Photon Workshop.
Anycubic has improved theparameter settings for all resin printers to provide you professional slicing experience and Anycubic Photon Workshop helps you save your cost spent on third-party slicing software.
● Exposure screen: 9.25 inch monochrome screen
● Printing volume: 5.9 liters / 199.1 ounces
● Print size: 24.5 x 19.7 x 12.2 cm / 9.6 x 7.8 x 4.8 inches (HW)
● Printing platform: Laserengraved aluminum alloy platform
● Light source: Parallel matrix light source (40 LED beads)
● Machine leveling: 4-point manual leveling
● Printing accuracy: 6K (5,760 x 3,600 pixels)
● Printing speed: ≤10cm/hour
● Control panel: 5-inch resistive touch screen
● Data input: USB-A 2.0 & 3.0 interface
● Power supply: On/Off switch
● Power input: 144W rated power
● Machine dimensions: 47.5 x 36 x 29 cm (HW)
● Machine weight: ~12kg
Additional information
Brand Name | ANYCUBIC |
---|---|
CE Certification | Yes |
Origin | Mainland China |
Bed Temp | N |
Slice Thickness | 10 – 150 μm |
Maximum Printing Speed | 10cm/hr. |
Nozzle Diameter | N |
Diameter Temp | N |
Auto Leveling | NO |
Maximum Print Size | 18.7 x 11.4 x 14.2 in. / 47.5 x 29 x 36 cm (HWD) |
Color Print Speed | ≤ 10cm/hr. |
Consumables Diameter | N |
Certification | CE |
Printing Speed | ≤ 10cm/hr. |
Language | English |
Fliament | UV resin |
Slice Software | Photon Workshop |
Power Supply | 120W |
Precision | X: 34 μm, Y: 10 μm |
Operating System | Photon M3 Plus |
File Format | N |
Molding Technology | LCD |
Interface Type | USB |
Maximum Working Speed | N |
